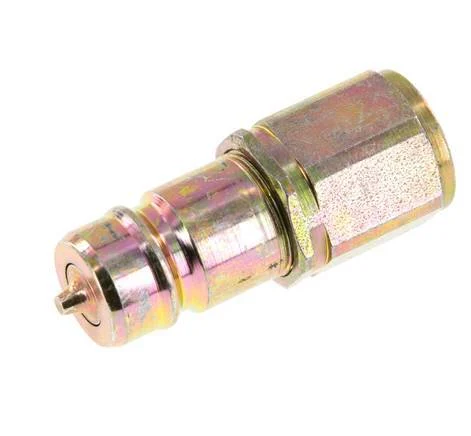

Steel DN 10 Hydraulic Coupling Plug M16x1.5 Female Threads ISO 7241-1 A D 17.3mm

Steel DN 10 hydraulic coupling plug with M16x1.5 female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A standard.

Pros:

• Streamlining design of the flow rate range
• Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
• Adheres to ISO 7241-1 A worldwide standard
• Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Connection size : M16 x 1.5
Nominal diameter (mm) : 10
Plug diameter : 17.3 mm
Socket diameter : 31 mm
Connection type : Inner thread metric
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -20
Max temperature (°C) : 100
Standard : ISO 7241-1 A
Shape : Plug (male)
Surface protection : Galvanic zink plated
With dust cap : No
