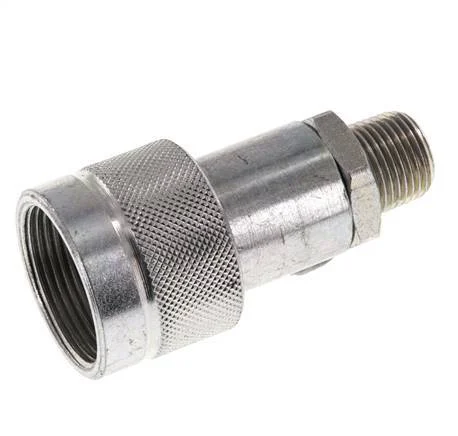

Steel DN 10 Hydraulic Coupling Socket 3/8 inch Male NPT Threads ISO 14540 D 19 mm

Steel DN 10 hydraulic coupling socket with 3/8 inch male NPT threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 3/8 inch male NPT threads allow for it to be threaded onto a matching female threaded part. The maximum operating pressure is 700 bar (10150 psi). The coupling is suitable for temperatures between -25 to 125 °C (-13 to 257 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 14540 standard.

Pros:

• Sleeve and plug can be coupled and uncoupled under pressure
• Minor oil loss when uncoupling
• Compatible with Power Team couplings
• Adheres to ISO 14540

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 10
Plug diameter : 19 mm (UNS 1-3/16-16)
Socket diameter : 35 mm
Connection type : Outer thread conical (NPT)
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 700
Min temperature (°C) : -25
Max temperature (°C) : 125
Standard : ISO 14540
Shape : Coupling (female)
Surface protection : Galvanic zink plated
With dust cap : No
