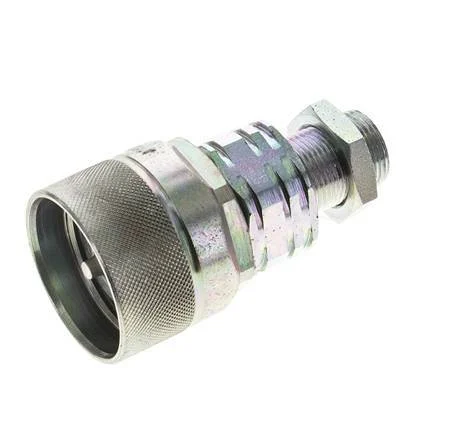

Steel DN 20 Hydraulic Coupling Plug 14 mm S Compression Ring Bulkhead ISO 14541/8434-1 D M42 x 2

Steel DN 20 hydraulic coupling plug with 14 mm S (heavy) compression ring and bulkhead thread. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 14 mm S (heavy) compression ring connection allows it to securely connect pipes together without soldering. The plug has bulkhead thread to mount it to a panel. The maximum operating pressure is 400 bar (5800 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 14541 and DIN EN ISO 8434-1 (DIN 2353) standard.

Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with a hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max 50 bar under pressure.

Pros:

• Secure against pressure thrusts and pressure vibrations
• Streamlining design of the flow rate range
• Adheres to ISO 14541 and DIN EN ISO 8434-1 (DIN 2353) worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
• The plug has bulkhead thread to mount it to a panel

Specifications

Nominal diameter (mm) : 20
Compression ring connection (mm) : 14
Plug diameter : M42 x 2
Socket diameter : 48 mm
Load class (DIN 2353) : S (heavy)
Connection type : Compression ring
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -20
Max temperature (°C) : 100
Standard : ISO 14541,DIN EN ISO 8434-1 (DIN 2353)
Shape : Plug (male)
Surface protection : Galvanic zink plated
With dust cap : No
