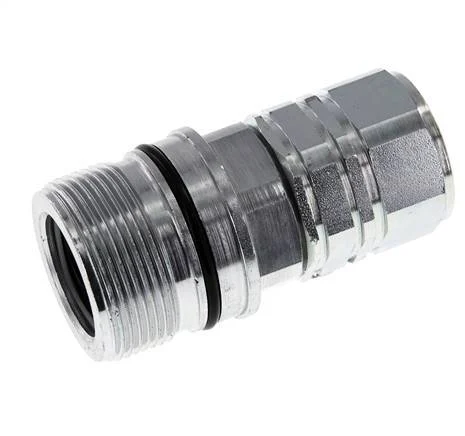

Steel DN 20 Hydraulic Coupling Socket G 3/4 inch Female Threads ISO 14541 D M42 x 2

Steel DN 20 hydraulic coupling socket with G 3/4 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/4 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 400 bar (5800 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 14541 standard.

Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with a hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max 50 bar under pressure.

Pros:

• Secure against pressure thrusts and pressure vibrations
• Streamlining design of the flow rate range
• Adheres to ISO 14541 worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Connection size : 3/4 inch
Nominal diameter (mm) : 20
Plug diameter : M42 x 2
Socket diameter : 48 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -20
Max temperature (°C) : 100
Standard : ISO 14541
Shape : Coupling (female)
Surface protection : Galvanic zink plated
With dust cap : No
