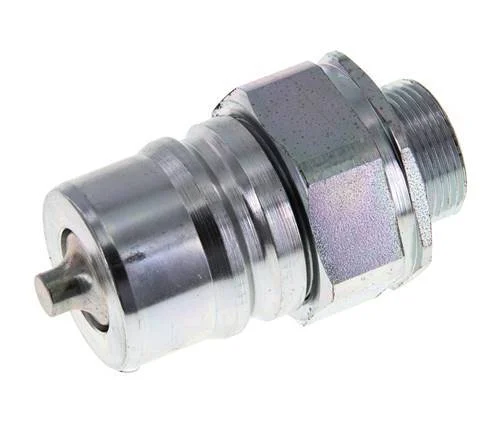

Steel DN 25 Hydraulic Coupling Plug 18 mm L Compression Ring ISO 7241-1 A/8434-1 D 34.3mm

Steel DN 25 hydraulic coupling plug with 18 mm L (light) compression ring. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 18 mm L (light) compression ring connection allows it to securely connect pipes together without soldering. The maximum operating pressure is 225 bar (3263 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353) standard.

Pros:

• Streamlining design of the flow rate range
• Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
• Adheres to ISO 7241-1 A worldwide standard and DIN EN ISO 8434-1 (DIN 2353)
• Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Nominal diameter (mm) : 25
Compression ring connection (mm) : 18
Plug diameter : 34.3 mm
Socket diameter : 54 mm
Load class (DIN 2353) : L (light)
Connection type : Compression ring
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 225
Min temperature (°C) : -20
Max temperature (°C) : 100
Standard : ISO 7241-1 A,DIN EN ISO 8434-1 (DIN 2353)
Shape : Plug (male)
Surface protection : Galvanic zink plated
With dust cap : No
