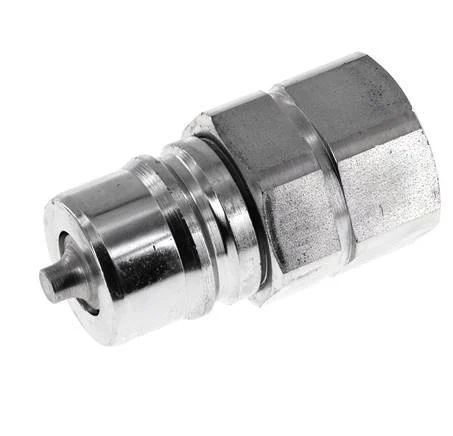

Steel DN 25 Hydraulic Coupling Plug G 1 inch Female Threads ISO 7241-1 A D 34.3mm

Steel DN 25 hydraulic coupling plug with G 1 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 1 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 225 bar (3263 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A standard.

Pros:

• Streamlining design of the flow rate range
• Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
• Adheres to ISO 7241-1 A worldwide standard
• Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Connection size : 1 inch
Nominal diameter (mm) : 25
Plug diameter : 34.3 mm
Socket diameter : 54 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 225
Min temperature (°C) : -20
Max temperature (°C) : 100
Standard : ISO 7241-1 A
Shape : Plug (male)
Surface protection : Galvanic zink plated
With dust cap : No
