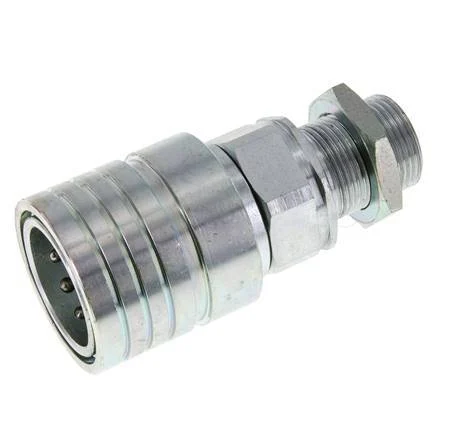

Steel DN 25 Hydraulic Coupling Socket 22 mm L Compression Ring Bulkhead ISO 7241-1 A/8434-1 D 34.3mm

Steel DN 25 hydraulic coupling socket with 22 mm L (light) compression ring and bulkhead thread. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 22 mm L (light) compression ring connection allows it to securely connect pipes together without soldering. The socket has bulkhead thread to mount it to a panel. The maximum operating pressure is 160 bar (2320 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353) standard.

Pros:

• Streamlining design of the flow rate range
• Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
• Adheres to ISO 7241-1 A worldwide standard and DIN EN ISO 8434-1 (DIN 2353)
• Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
• The socket has bulkhead thread to mount it to a panel

Specifications

Nominal diameter (mm) : 25
Compression ring connection (mm) : 22
Plug diameter : 34.3 mm
Socket diameter : 54 mm
Load class (DIN 2353) : L (light)
Connection type : Compression ring
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -20
Max temperature (°C) : 160
Standard : ISO 7241-1 A,DIN EN ISO 8434-1 (DIN 2353)
Shape : Coupling (female)
Surface protection : Galvanic zink plated
With dust cap : No
