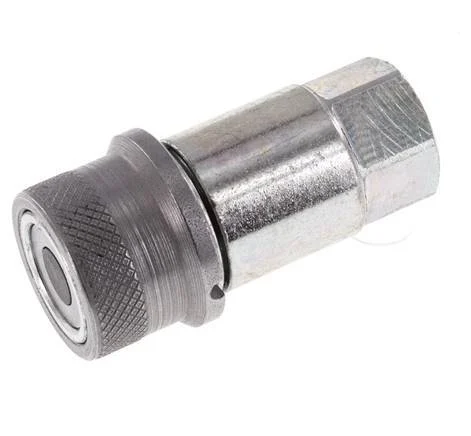

Steel DN 4 Flat Face Hydraulic Socket G 1/8 inch Female Threads D 13.5mm

Steel DN 4 flat face hydraulic socket with G 1/8 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 1/8 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 500 bar (7250 psi). The coupling is suitable for temperatures between -25 to 125 °C (-13 to 257 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection.

Pros:

• No dirt can get in as the coupling can simply be wiped clean due to the smooth flat face surface
• Axial forces can be absorbed well due to the coupling’s design, especially suited for use on hydraulic hoses

Specifications

Connection size : 1/8 inch
Nominal diameter (mm) : 4
Plug diameter : 13.5 mm
Socket diameter : 25 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 500
Min temperature (°C) : -25
Max temperature (°C) : 125
Shape : Coupling (female)
Surface protection : Galvanic zink plated
