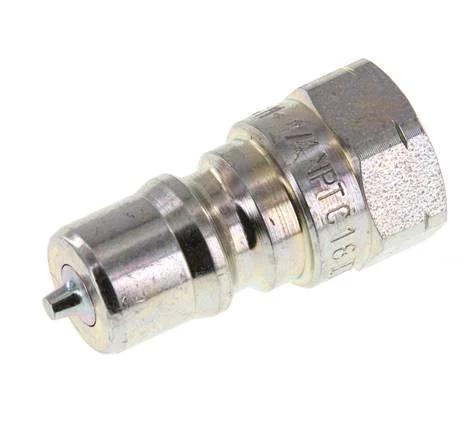

Steel DN 6.3 Hydraulic Coupling Plug 1/4 inch Female NPT Threads ISO 7241-1 B D 14.2mm

Steel DN 6.3 hydraulic coupling plug with 1/4 inch female NPT threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 1/4 inch female NPT threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 350 bar (5075 psi). The coupling is suitable for temperatures between -25 to 120 °C (-13 to 248 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 B standard.

Pros:

• Adheres to ISO 7241-1 B worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Connection size : 1/4 inch
Nominal diameter (mm) : 6.3
Plug diameter : 14.2 mm
Socket diameter : 28 mm
Connection type : Inner thread conical (NPT)
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 350
Min temperature (°C) : -25
Max temperature (°C) : 120
Standard : ISO 7241-1 B
Shape : Plug (male)
Surface protection : Galvanic zink plated
With dust cap : No
