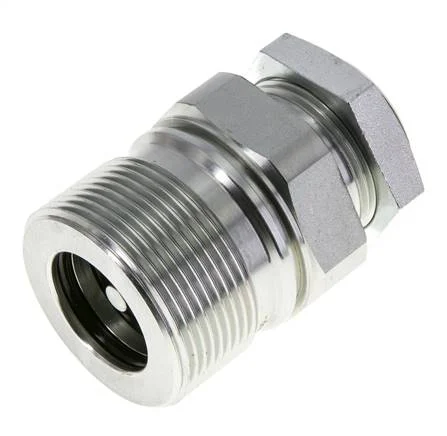

Steel EDBRO Screw Couplings G 1 inch Female Threads Fixed Half D 54 mm

Steel EDBRO screw couplings with G 1 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 1 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 300 bar (4350 psi). The coupling is suitable for temperatures between -25 to 100 °C (-13 to 212 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection.

To connect, screw this quick fastener to the sleeve component and use the hand nut to tighten. A chamber is created before the plug and sleeve connect, preventing contaminants from entering. When de-coupled, the plug and sleeve are closed before exposure to prevent any loss in pressure.

Suitable for: Vehicle hydraulics, such as tippers, silo vehicles, construction machines, etc.

Pros:

• Secure against pressure thrusts and pressure vibrations
• Streamlining design of the flow rate range
• It has a bulkhead design
• Compatible with many other products (e.g. EDBRO or faster type CVE)

Specifications

Connection size : 1 inch
Plug diameter : 54 mm (UNS 2-1/8-10)
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 300
Min temperature (°C) : -25
Max temperature (°C) : 100
Coupling features : Fixed half
Surface protection : Galvanic zink plated
With dust cap : No
