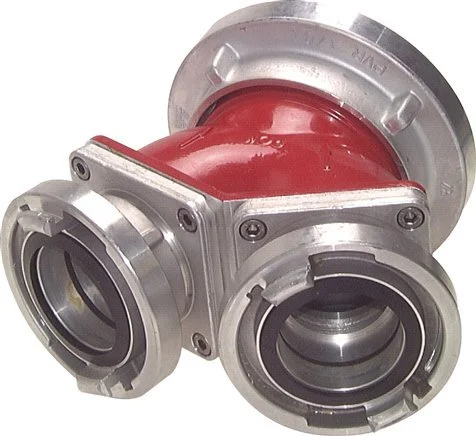

Storz 52-C (2xInput) & 75-B (Output) Collector With Butterfly Valve

This is a Storz collector with two 52-C input connections (lug distance of 66 mm) and one 75-B Storz output connection (lug distance of 89 mm). The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

Pros:

• Quick connection and release by twisting 120 degrees

Specifications

Storz size : 52-C (Storz)
Storz size (smaller) : 75-B (Storz)
Hydrant features : With butterfly valve
Lug distance 1 : 66 mm
Lug distance 2 : 89 mm
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Number of Storz connections : 3
