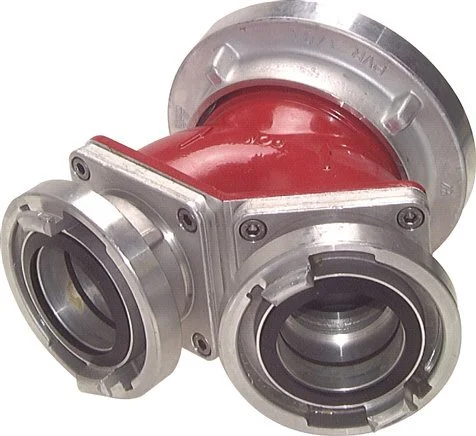

This is a Storz collector with two 75-B input connections (lug distance of 89 mm) and one 110-A Storz output connection (lug distance of 133 mm). The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).
Pros:
- Quick connection and release by twisting 120 degrees
Specifications
Storz size : 75-B (Storz)
Storz size (smaller) : 110-A
Hydrant features : With butterfly valve
Lug distance 1 : 89 mm
Lug distance 2 : 133 mm
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Number of Storz connections : 3
