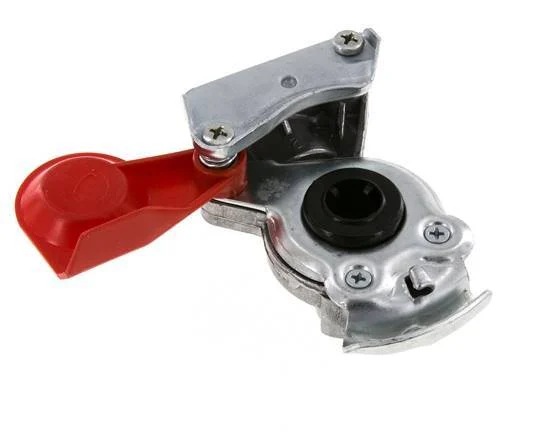

Supply Red Aluminum Gladhand Coupling M16x1.5 Female Threads DIN 74254

Aluminum gladhand coupling with M16x1.5 female threads. It is a vehicle coupling designed for dual-circuit braking systems.

The maximum operating pressure is 10 bar (145 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The seal material is NBR. The aluminum housing has a galvanic zink plated surface protection. The coupling complies with the DIN 74254 standard.

Note: Non-interchangeable design for dual-circuit braking systems

Pros:

• Adheres to DIN 74254 and can be combined with other manufacturers
• The red cover indicates it is for the supply line
• With valve, to avoid air loss when uncoupling

Specifications

Connection size : M16 x 1.5
Connection type : Inner thread metric
Material : Aluminum
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -40
Max temperature (°C) : 80
Standard : DIN 74254
Surface protection : Galvanic zink plated
With dust cap : No
