Features:
- Helps to meet IEEE 519-2014 requirements
- Strong durable design specifically for VFD applications
- UL Listed
- Made in the USA
Typical Applications with VFDs:
- HVAC Chillers
- Pumps
- Oil rigs
- Conveyors
- Sprinkler irrigation systems

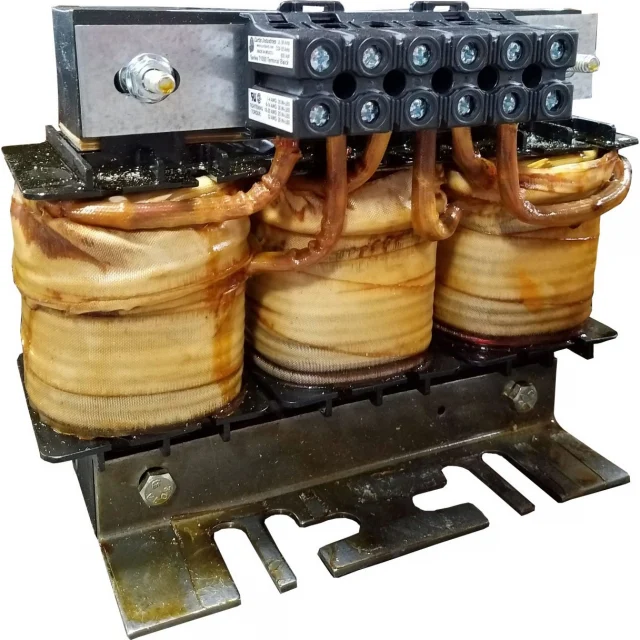

KDR line reactors are electrical components that help to protect 6-pulse rectifiers and power conversion devices such as variable frequency drives (VFDs). A KDR line reactor can help reduce harmonics and protect the drive from harmful voltage spikes when used with a VFD. KDR line reactors are recommended on the input of each VFD in multiple drive applications.
Output of a VFD
KDR reactors are constructed with durability in mind and can be used on both the input and output of a VFD. When used on the output of a drive, KDR reactors reduce voltage distortion at the motor terminals extending the service life and minimizing insulation stress of any motor.
For more information, please see Data Sheet and Drawing
Technical Details
| Rated Voltage | 480 |
| Hertz (Hz) | 50/60 |
| Horsepower (HP) | 60.0 |
| kVAR | 0 |
| Phase | 3 |
| Amps | 80 |
| Impedance Value | <3% Ultra Low Z |
| UL | UL Listed |
| Enclosure Type | Open |
| Country of Origin | US |
| RoHS Indicator | Compliant |
| Dimensions |
|
| Weight | 25 lbs |
