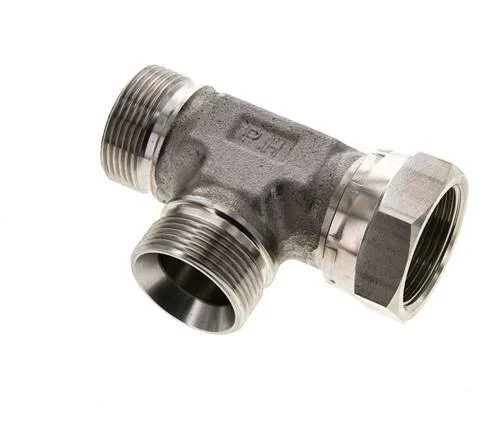

Tee Fitting G1 1/4” Male x Female Stainless steel Hydraulic 190bar (2669.5psi)

This right-angle tee fitting is used for hydraulic applications. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). It has a 60° cone seat design. The maximum operating pressure is 190 bar (2669.5 psi).

Specifications

Thread : 1 1/4 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Stainless steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 190
Type of sealing : 60° cone
Model : L-shape
Angle adjustable : No
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
