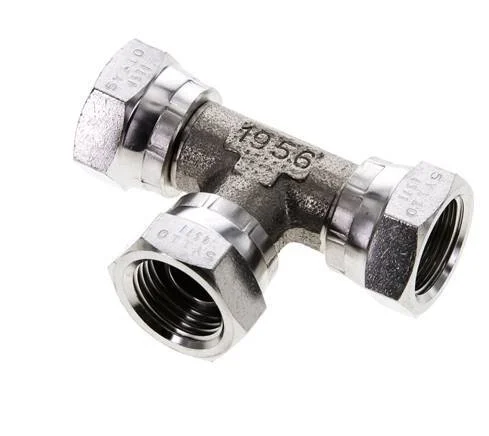

Tee Fitting G1/2” Female Stainless steel Hydraulic 300bar (4215.0psi)

This tee fitting is used for hydraulic applications. This tee fitting is used for hydraulic applications. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). It has a 60° cone seat design. The maximum operating pressure is 300 bar (4215.0 psi).

Specifications

Thread : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 300
Type of sealing : 60° cone
Model : T-piece
Angle adjustable : No
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
