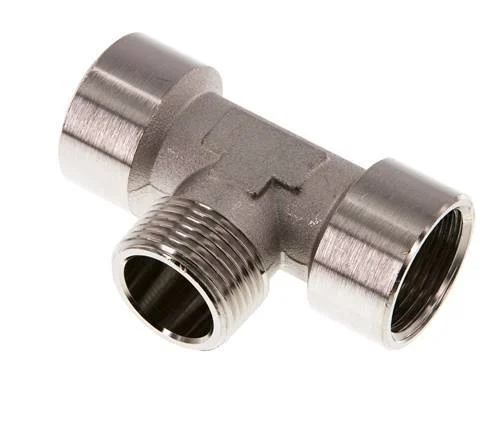

Tee Fitting G1” Female x R1” Male Nickel-plated Brass 16bar (224.8psi)

This is an inline tee fitting. It is made of nickel-plated brass, which resists rust better than steel fittings and unfinished brass fittings. The maximum operating pressure is 16 bar (224.8 psi).

Specifications

Thread : 1 inch
Connection type : Outer thread conical BSPT-R,Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : T-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
