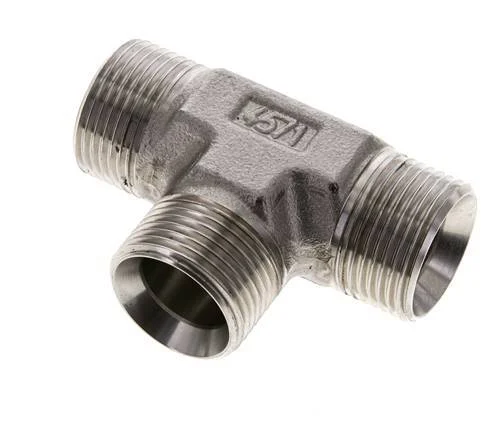

Tee Fitting G1” Male Stainless Steel 225bar (3161.25psi)

This tee fitting is used for hydraulic applications. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). It has a 60° cone seat design. The maximum operating pressure is 225 bar (3161.25 psi).

Specifications

Thread : 1 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 225
Type of sealing : 60° cone
Model : T-piece
Angle adjustable : No
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
