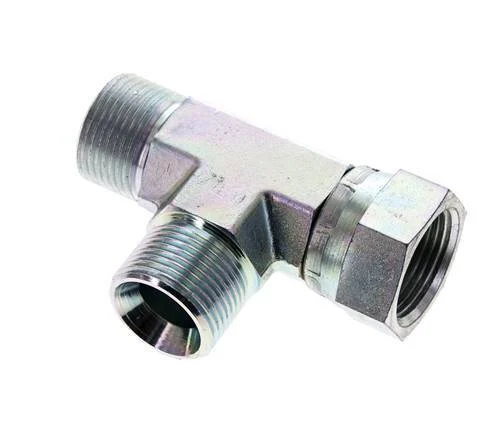

Tee Fitting G3/4” Male x Female Steel Hydraulic 325bar (4566.25psi)

This right-angle tee fitting is used for hydraulic applications. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. It has a 60° cone seat design. The maximum operating pressure is 325 bar (4566.25 psi).

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 325
Type of sealing : 60° cone
Model : L-shape
Angle adjustable : No
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
With drain : No
