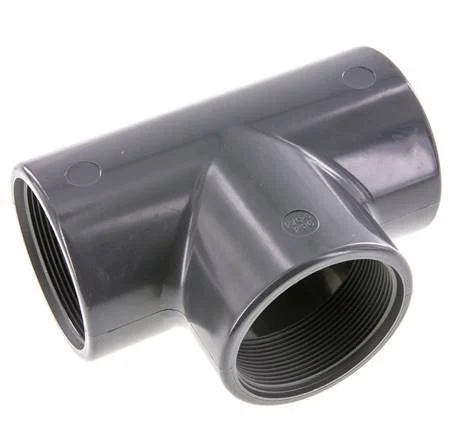

Tee Fitting Rp2 1/2” Pvc-u EN 1452-3 16bar (224.8psi)

This PVC-U tee fitting is compliant with the 1452-3 standard and can be used for water supply and for under- and above-ground drainage as well as for sewerage under pressure. The maximum operating pressure is 16 bar (224.8 psi).

Note: If using thread sealant, ensure it does not damage PVC-U.

Specifications

Thread : 2 1/2 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : PVC-U
External diameter : 89 mm
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : 0
Max temperature (°C) : 60
Standard : EN 1452-3
Model : T-piece
Angle adjustable : No
Material connection 1 : PVC-U
Material connection 2 : PVC-U
Material connection 3 : PVC-U
With drain : No
