Tee Press Fitting – 28mm Female & Rp 1/2” Female – Copper alloy

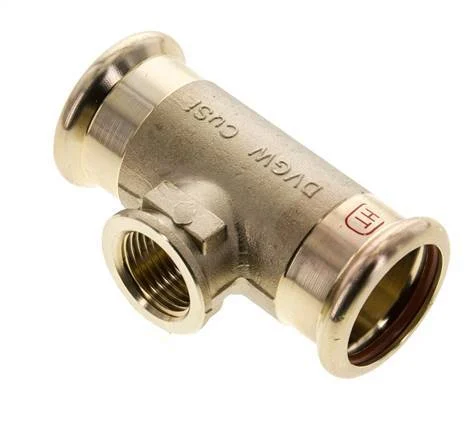

This is a tee press fitting made from copper alloy. The fitting has two female press port and a female threaded port. Connection 1 and 2 are designed for a tube with an outer diameter of 28 mm and connection 3 has Rp 1/2 inch female threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F).

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA

Specifications

Thread : 1/2 inch
Tube outer diameter : 28 mm
Connection type : Female press connection,Inner thread cylindrical BSPT-Rp
Material : Copper alloy
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -20
Max temperature (°C) : 200
Material connection 1 : Copper alloy
Material connection 2 : Copper alloy
Material connection 3 : Copper alloy
With drain : No
