TOPAZ, TD-LBK101VA-USB-R, GemView 10 Tablet Display, 10.1″ TFT LCD, USB, Citrix Ready
Features:
- Sleek, thin tablet design
- 10.1” half-page TFT LCD display
- Kensington mounting slots for security and convenience
- High-quality biometric and forensic capture
- Topaz software for complete signing and signature solution customization techniques
- TFT LCD Display, LED backlit 1280 x 800 resolution
- Electromagnetic, battery-less, Pressure-sensing Pen

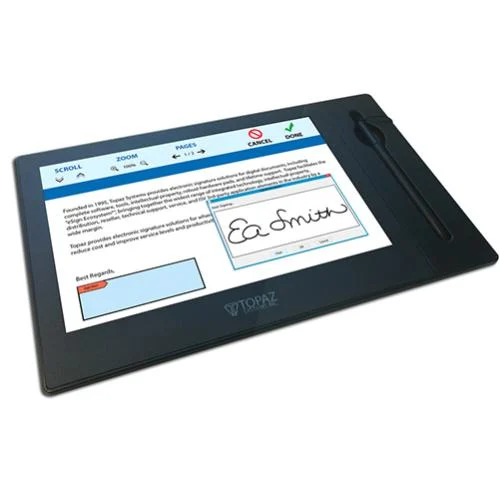

The Topaz GemView® 10 Tablet Display provides all the display advantages of a high-performance tablet with none of the IT drawbacks.
With its half-page, 10.1″ diagonal, high-resolution display and electronic pen, the GemView 10 allows for signing documents, playing videos, running ads, and much more.
Tablet Display comes bundled with Topaz software solutions for GemView, including apps for PDF creation, signing, and annotating (by the PC user, by a client in a one-on-one environment, and by multiple clients in a one-to-many environment), SDKs for development, and more.
It also provides the benefits of secure biometric Topaz forensic signatures. The LCD display allows users to see their signature while signing.
Technical Details
| Screen | |
| Display | |
| Model | 10.1 inch TFT LCD, LED backlight |
| Screen Type | 8H tempered glass; Anti-scratch, anti-glare, and anti-fingerprint coating |
| Resolution | 1280 x 800 |
| Brightness | 160 cd/m2(typical) / 200 cd/m2(max.) |
| Angle of Visibility | Horizontal 170°, vertical 170° |
| Response Time | Tr+Tf: 25ms (typical) / 50ms (max.) |
| Connector | |
| USB | USB x1 |
| Power Supply | |
| Input | DC5V/1A, USB power supply |
| Power Consumption | Start-up 5W, sleep <1.0W |
| Body | |
| Equipment Dimension | 300mm x 185mm x 22mm |
| Equipment Weight | Net weight: 0.85 kg, total weight: 1.3 kg |
| Environment | |
| Temperature Range | Operation: 0°C ~ +50°C; Storage: -10°C ~ +60°C |
| Relative Humidity | Operation: 20% ~ 80%; Storage: 10% ~ 90% |
| Interactive Electromagnetic Pen | |
| Model | |
| Technique | Electromagnetic |
| Action Area | Full screen |
| Technical Specifications | |
| Resolution | 5080 LPI (lines per inch) |
| Tracking Velocity | 200 PPS (dots per second) |
| Pressure Sensing | 2048 Levels |
| Accuracy Rating | ± 0.5mm (center), ± 2mm (edges and corners) |
| Readable Height | 5mm |
| Electromagnetic Pen | |
| Model | Pressure sensing, wireless |
| Inclination of Detectable Pressure Sensitive Pen | Inclination range: ± 45° |
| Pen Tip | Replaceable |
| Note:The specification is subject to change without prior notice. |
