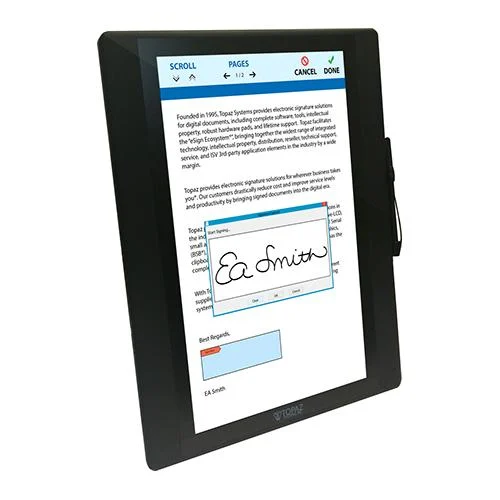

TOPAZ, TD-LBK156VA-USB-R, GemView 16 Tablet Display, 15.6″ TFT LCD, USB, Citrix Ready
TD-LBK156VA-USB-R Includes Only:
- Tablet display
- Tablet display support
- Power adapter
- USB 2.0 Y cable
- Electromagnetic pen
- Pen tether
- 3 x Pen Tip
- Pen tip replacement tool
- Installation instructions
Features:
- Sleek, thin tablet design
- 15.6” full-page TFT LCD display
- Kensington mounting slots and standard VESA mounts for security and convenience
- High-quality biometric and forensic capture
- Topaz software for complete signing and signature solution customization techniques
- TFT LCD Display, LED backlit 1366 x 768 resolution
- Electromagnetic, battery-less, Pressure-sensing Pen
The Topaz GemView® 16 Tablet Display provides all the display advantages of a high-performance tablet with none of the IT drawbacks.
With its full-page, 15.6″ diagonal, high-resolution display and electronic pen, the GemView 16 allows for signing documents, playing videos, running ads, and much more.
GemView 16 comes equipped with a multi-angle kickstand for optimal signing and positioning.
Comes bundled with Topaz software solutions for GemView, including apps for PDF creation, signing, and annotating (by the PC user, by a client in a one-on-one environment, and by multiple clients in a one-to-many environment), SDKs for development, and more. The LCD display allows users to see their signature while signing.
Technical Details
| Screen | |
| Display | |
| Model | 15.6 inch TFT LCD, LED backlight |
| Screen Type | 8H tempered glass; Anti-scratch, anti-glare, and anti-fingerprint coating |
| Resolution | 1366 x 768 |
| Brightness | 220 cd/m2(typical) / 200 cd/m2(min.) |
| Angle of Visibility | Horizontal 90°, vertical 130° |
| Response Time | Tr+Tf: 25ms (typical) / 50ms (max.) |
| Connector | |
| USB | USB x1 |
| Power Supply | |
| Input | AC 100-240V, 50/60HZ |
| Output | DC 12V/2A |
| Power Consumption | Start-up 6.5W, sleep <1.0W |
| Body | |
| Equipment Dimension | 390mm x 290mm x 22.35mm |
| Equipment Weight | Net weight (no support): 1.88kgNet weight (With support): 2.39kgTotal weight: 3.28 kg |
| Environment | |
| Temperature Range | Operation: 0°C ~ +40°C; Storage: -20°C ~ +65°C |
| Relative Humidity | Operation: 20% ~ 80%; Storage: 10% ~ 90% |
| Interactive Electromagnetic Pen | |
| Model | |
| Technique | Electromagnetic |
| Action Area | Full screen |
| Technical Specifications | |
| Resolution | 5080 LPI (lines per inch) |
| Tracking Velocity | 200 PPS (dots per second) |
| Pressure Sensing | 2048 Levels |
| Accuracy Rating | ± 0.5mm (center), ± 2mm (edges and corners) |
| Readable Height | 5mm |
| Electromagnetic Pen | |
| Model | Pressure sensing, wireless |
| Inclination of Detectable Pressure Sensitive Pen | Inclination range: ± 45° |
| Pen Tip | Replaceable |
| Note:The specification is subject to change without prior notice. |
