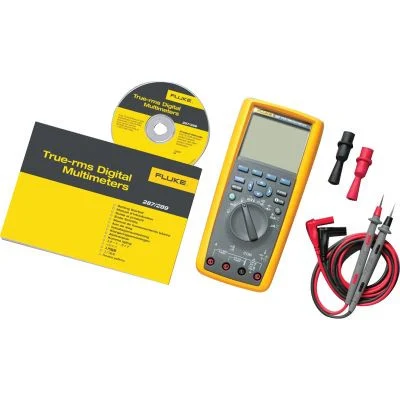

True-RMS Electronics Logging Multimeter with TrendCapture

Features and Benefits

• Large 50,000 1/4 VGA display with white backlight
• Logging features designed for unattended monitoring
• On board help screens for measurement functions
• Saved measurements allow you to name and recall measurements made in the field
• Multi-lingual interface

True-rms logging multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Unique logging and graphing capabilities mean you no longer need to download to a PC to detect trends. Multiple logging sessions possible without download. 0.025% basic DC accuracy. 100 kHz AC bandwidth. Real time clock for automatic time stamping of saved readings. Tru-rms AC voltage and current for accurate measurements on complex signals or non linear loads. AC bandwidth specified to 100 kHz. Measure up to 10 A (20 A for 30 seconds)50 mF capacitance range. Features temperature function. Premium test leads and alligator clips included. Limited lifetime warranty.
