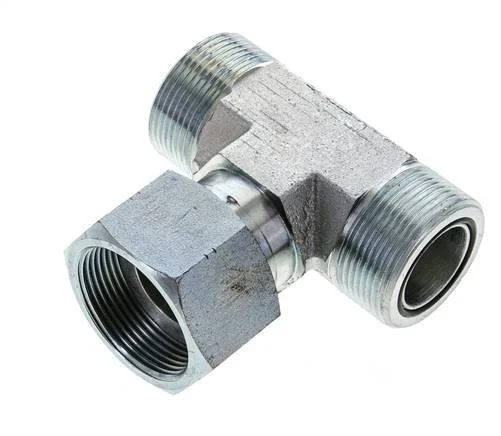

UN 1-11/16”-12 M/F Zinc plated Steel Tee ORFS with union nut 250 Bar – Hydraulic

This ORFS T-screw connection is designed with two male ORFS connections and 1 female ORFS connection port in a T shape. Connection 1 has ORFS male UN 1-11/16inch-12 threads. Connection 2 has ORFS male UN 1-11/16inch-12 threads. Connection 3 has ORFS female UN 1-11/16inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi).

FL3T-MF-O series

The FL3T-MF-O series has 3 connection ports. Two male threaded ORFS ports and one female threaded ORFS port in the shape of a T. Made out of steel with a max pressure of 630 bar.

Specifications

Thread : UN 1-11/16-12
Thread (smallest) : UN 1-11/16-12
Connection type : Outer thread flare (UNF)
Material : Steel
Fitting features : Hydraulic,With gasket
Max pressure at 20 °C (bar) : 250
Type of sealing : O-ring
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
