UN 1-3/16”-12 Male Zinc plated Steel Tee ORFS 400 Bar – Hydraulic

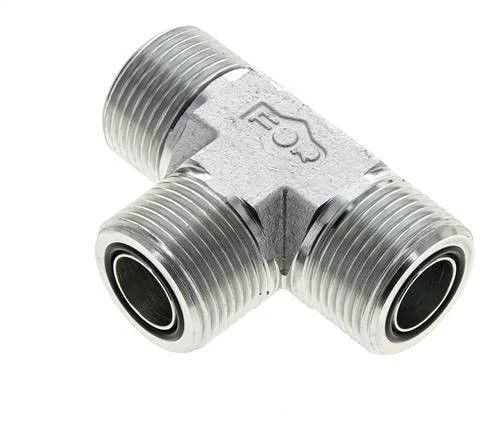

This T-piece is designed with three male ORFS connection ports in the shape of a T. Connection 1 has ORFS male UN 1-3/16inch-12 threads. Connection 2 has ORFS male UN 1-3/16inch-12 threads. Connection 3 has ORFS male UN 1-3/16inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi).

FL3T-M-O series

The FL3T-M-O series has 3 male ORFS connection ports in the shape of a T. Made out of steel, they have a max pressure of 630 bar.

Specifications

Thread : UN 1-3/16-12
Thread (smallest) : UN 1-3/16-12
Connection type : Outer thread flare (UNF)
Material : Steel
Fitting features : Hydraulic,With gasket
Max pressure at 20 °C (bar) : 400
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
