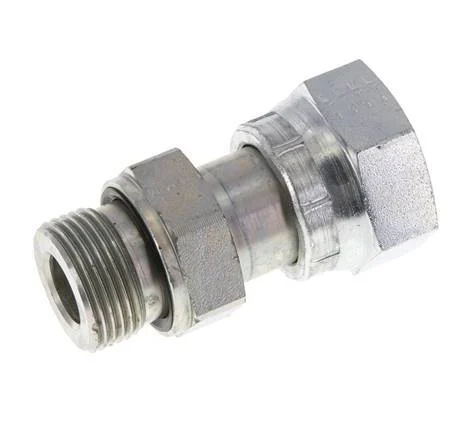

UN 1-3/16”-12 x G 3/4” F/M Zinc plated Steel Reducing Adapter ORFS 400 Bar – Hydraulic

This straight ORFS screwed connection is designed with male G threads and a female ORFS connection. Connection 1 has ORFS female UN 1-3/16inch-12 threads. Connection 2 has male G 3/4 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a elastomer seal. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi).

FL2S-FM-O series

The FL2S-FM-O series are straight fittings with male G threads and a female ORFS connection point. They are made out of steel.

Specifications

Thread : UN 1-3/16-12
Thread (smaller) : 3/4 inch
Connection type : Inner thread flare (UNF),Outer thread cylindrical BSPP-G
Material : Steel
Seal material : Elastomer
Max pressure at 20 °C (bar) : 400
Fitting features : Hydraulic,With gasket
Type of sealing : O-ring
Model : 2-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
