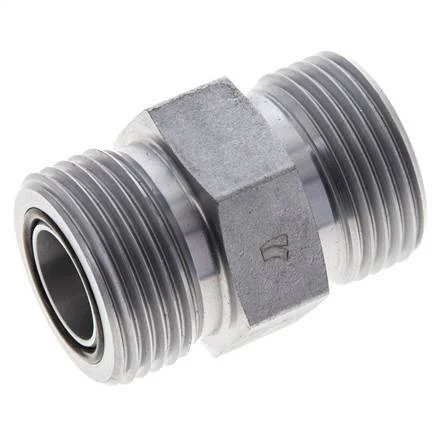

UN 1-3/16”-12 Zinc plated Steel Double Nipple ORFS 400 Bar – Hydraulic

This straight ORFS screw connection is designed with male to male ORFS connection points. Connection 1 has ORFS male UN 1-3/16inch-12 threads. Connection 2 has ORFS male UN 1-3/16inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi).

FL2S-M-O series

The FL2S-M-O series are straight fittings with two male ORFS connection points. They are a 1 part design made out of steel.

Specifications

Thread : UN 1-3/16-12
Thread (smaller) : UN 1-3/16-12
Connection type : Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 400
Fitting features : Hydraulic,With gasket
Type of sealing : O-ring
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
