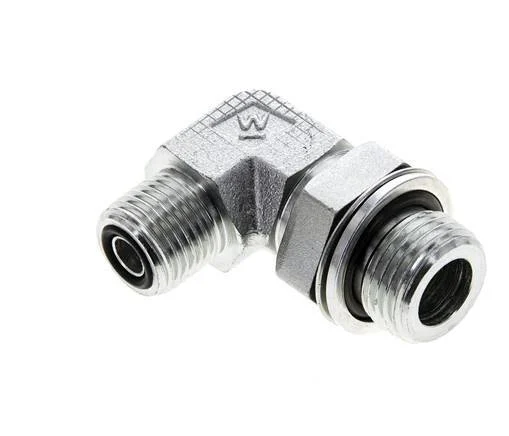

UN 11/16”-16 x G 1/2” Male Zinc plated Steel 90 deg Elbow Fitting ORFS 400 Bar – Hydraulic

This ORFS elbow screw connection is designed with male ORFS connections. Connection 1 has ORFS male UN 11/16inch-16 threads. Connection 2 has male G 1/2 inch threads. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a elastomer seal. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). The input and the output are at a 90° angle.

FL2E-MM-O series

The FL2E-MM-O series are ORFS elbow fittings with two male ends at a 90 degree bend. They are made out of steel and one male end has o-rings at the end of the threads and one male end has an o-ring at the base of the threads.

Specifications

Thread : UN 11/16-16
Thread (smaller) : 1/2 inch
Connection type : Outer thread flare (UNF),Outer thread cylindrical BSPP-G
Material : Steel
Seal material : Elastomer
Max pressure at 20 °C (bar) : 400
Fitting features : Hydraulic,With gasket
Type of sealing : O-ring
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
