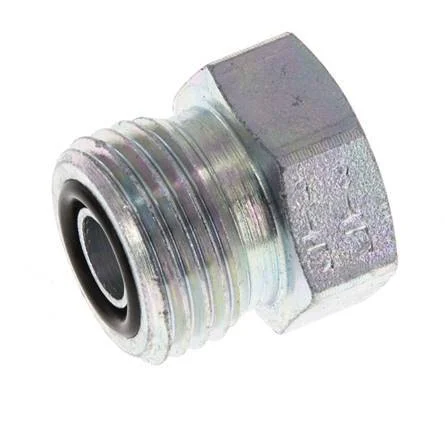

UN 11/16”-16 Zinc plated Steel Closing Plug ORFS 630 Bar [2 Pieces]

This ORFS closing plug is designed with the male threaded portion of the ORFS connection. Connection 1 has ORFS male UN 11/16inch-16 threads. It is an end cap, so it has no output port. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi).

FL1-FM-O series

The FL1-FM-O series consists of fittings with 1 connection port designed specifically for ORFS (O-ring facing seal) fittings. They are made out of steel with UN, UNF, or UNS male or female threads with size range of 9/16 inch to 2 inches. They are designed to stop the media flow.

Specifications

Thread : UN 11/16-16
Connection type : Outer thread flare (UNF)
Fitting features : Hydraulic,Capped
Material : Steel
Max pressure at 20 °C (bar) : 630
Type of sealing : O-ring
Material connection 1 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
