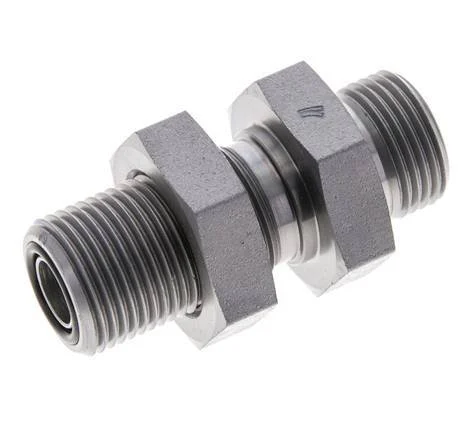

UN 13/16”-16 Male Zinc plated Steel Bulkhead Fitting ORFS 630 Bar – Hydraulic

This straight ORFS bulkhead screw connection is designed with two male ORFS connection points in a bulkhead design. Connection 1 has ORFS male UN 13/16inch-16 threads. Connection 2 has ORFS male UN 13/16inch-16 threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi).

FL2S-M-OB series

The FL2S-M-OB series are straight fittings with two male ORFS connection points and a bulkhead design. They are a 2 part design made out of steel.

Specifications

Thread : UN 13/16-16
Thread (smaller) : UN 13/16-16
Connection type : Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 630
Fitting features : Hydraulic,With gasket,Bulkhead
Type of sealing : O-ring
Model : 2-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
