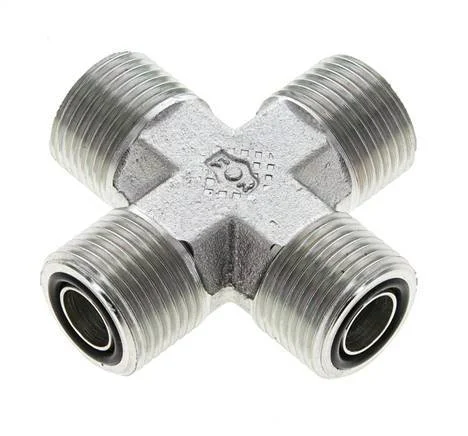

UN 13/16”-16 Male Zinc plated Steel Cross ORFS 630 Bar – Hydraulic

This ORFS cross screw connection is designed with four male ORFS connection ports in a cross formation. Connection 1 has ORFS male UN 13/16inch-16 threads. Connection 2 has ORFS male UN 13/16inch-16 threads. Connection 3 has ORFS male UN 13/16inch-16 threads. Connection 4 has ORFS male UN 13/16inch-16 threads. It comes with a gasket to ensure a proper seal can be made. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi).

FL4X-M-O series

The FL4X-M-O series has 4 male ORFS connection ports in a cross shape. 250, 400, or 630 bar as the max pressure. They are made out of steel.

Specifications

Thread : UN 13/16-16
Connection type : Outer thread flare (UNF)
Material : Steel
Fitting features : Hydraulic,With gasket
Max pressure at 20 °C (bar) : 630
Surface protection : Galvanic/electrolytic zinc plated
Type of sealing : O-ring
Model : Cross piece 90°
Nominal inner diameter connection 4 : UN 13/16-16
