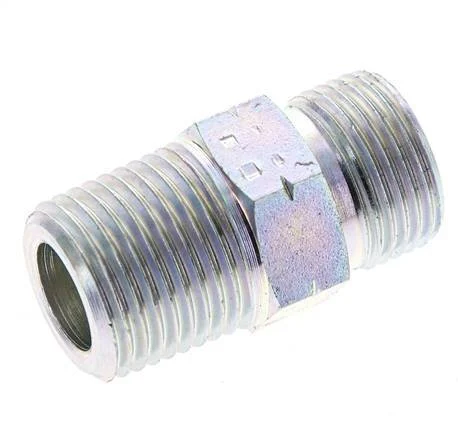

UN 13/16”-16 x 1/2” NPT Zinc plated Steel Double Nipple ORFS 630 Bar – Hydraulic

This straight ORFS screw connection is designed with a male ORFS connection point to male threads. Connection 1 has ORFS male UN 13/16inch-16 threads. Connection 2 has male NPT 1/2 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi).

FL2S-MM-O series

The FL2S-MM-O series are straight fittings with a male ORFS connection port to male NPT, G, or metric threads. 1 part design made out of steel.

Specifications

Thread : UN 13/16-16
Thread (smaller) : 1/2 inch
Connection type : Outer thread flare (UNF),Outer thread conical (NPT)
Material : Steel
Max pressure at 20 °C (bar) : 630
Fitting features : Hydraulic,With gasket
Type of sealing : O-ring
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
