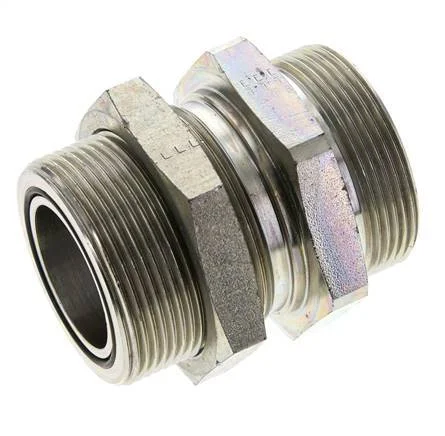

UN 2”-12 Male Zinc plated Steel Bulkhead Fitting ORFS 250 Bar – Hydraulic

This straight ORFS bulkhead screw connection is designed with two male ORFS connection points in a bulkhead design. Connection 1 has ORFS male UN 2inch-12 threads. Connection 2 has ORFS male UN 2inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi).

FL2S-M-OB series

The FL2S-M-OB series are straight fittings with two male ORFS connection points and a bulkhead design. They are a 2 part design made out of steel.

Specifications

Thread : UN 2-12
Thread (smaller) : UN 2-12
Connection type : Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 250
Fitting features : Hydraulic,With gasket,Bulkhead
Type of sealing : O-ring
Model : 2-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
