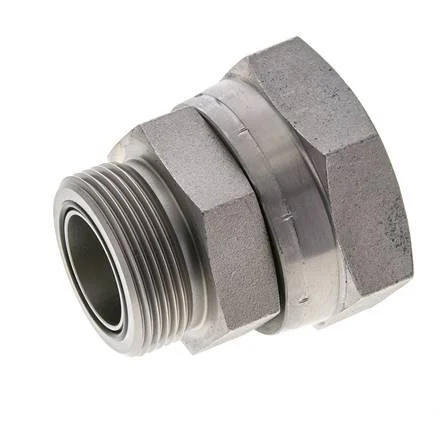

UN 2”-12 x UN 1-11/16”-12 F/M Zinc plated Steel Reducing Adapter ORFS 250 Bar – Hydraulic

This ORFS elbow screw connection is designed with a larger male ORFS connection point and a smaller female ORFS conneciton port. Connection 1 has ORFS male UN 2inch-12 threads. Connection 2 has ORFS female UN 1-11/16inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi).

FL2S-MF-O series

The FL2S-MF-O series are straight ORFS reducing fittings. The male ORFS connection port is larger than the female ORFS connection port. They are 2-part made of steel.

Specifications

Thread : UN 2-12
Thread (smaller) : UN 1-11/16-12
Connection type : Outer thread flare (UNF),Inner thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 250
Fitting features : Hydraulic,Reducing,With gasket
Type of sealing : O-ring
Model : 2-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
