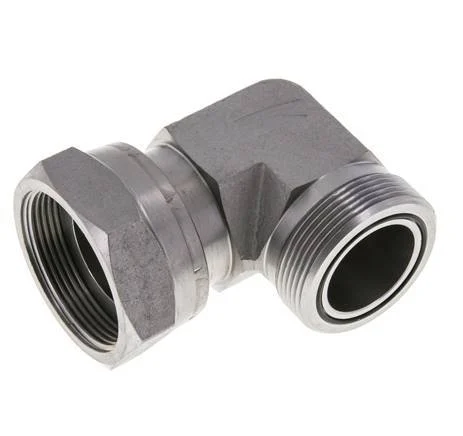

UN 2”-12 x UN 2”-12 M/F Zinc plated Steel 90 deg Elbow Fitting ORFS 250 Bar – Hydraulic

This ORFS elbow screw connection is designed with an ORFS female connection and an ORFS male connection at an angle. Connection 1 has ORFS male UN 2inch-12 threads. Connection 2 has ORFS female UN 2inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi). The input and the output are at a 90° angle.

FL2E-MF-O series

The FL2E-MF-O series are elbow ORFS fittings with one male and one female ORFS connection point. Bend angle of 45 or 90 degrees and made out of steel.

Specifications

Thread : UN 2-12
Thread (smaller) : UN 2-12
Connection type : Outer thread flare (UNF),Inner thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 250
Fitting features : Hydraulic,With gasket
Type of sealing : O-ring
Model : 2-part
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
