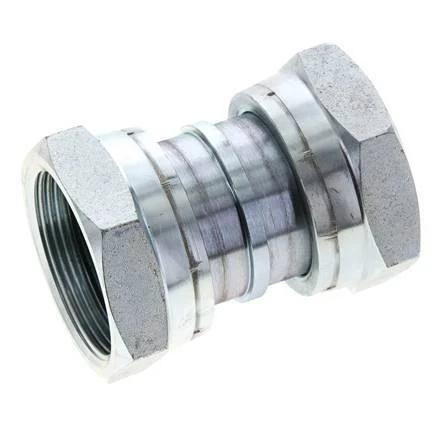

UN 2”-12 Zinc plated Steel Socket ORFS with Union nut 250 Bar – Hydraulic

This straight ORFS screwed connection is designed with two female ORFS connections. Connection 1 has ORFS female UN 2inch-12 threads. Connection 2 has ORFS female UN 2inch-12 threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi). They have a 3-part design.

FL2S-F-O series

The FL2S-F-O series are straight fittings with two female ORFS connection points. They are made out of steel and are a 3-part design.

Specifications

Thread : UN 2-12
Thread (smaller) : UN 2-12
Connection type : Inner thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 250
Fitting features : Hydraulic,With gasket
Type of sealing : O-ring
Model : 3-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
