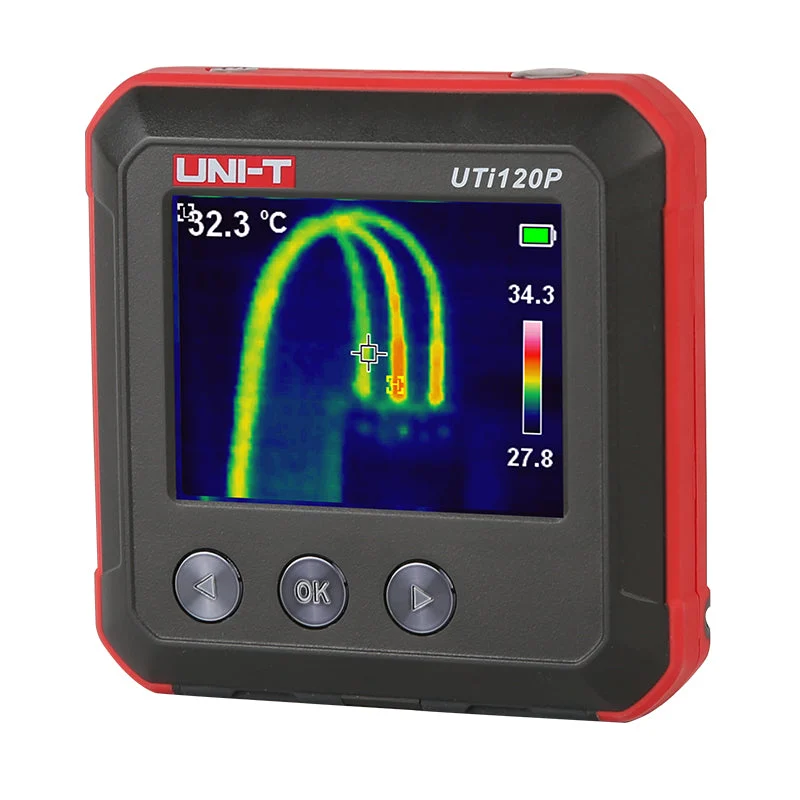

UNI-T UTI120P Thermal Camera

In everyday situations, the compact UTi120P thermal imaging camera can provide excellent thermal imaging results. This camera can be used for many purposes due to its wide temperature range, good resolution and accuracy, and wide field of view. The camera is also easy to carry around due to its small size, so you can take measurements on location easily. Additionally, the UTi120P allows for tracking temperatures high and low and is automatically powered off. It also takes and stores pictures. Additionally, you have the option of selecting among three color schemes (Iron, Rainbow, and Grey). A Lithium-ion rechargeable battery powers the camera, which can be charged via a USB cable.

Pros:

• Compact

Cons:

• No video recording

Specifications

Temperature measuring range (°C) : -20 °C to 400 °C
Sensor resolution (horizontal) (px) : 120
Sensor resolution (vertical) (px) : 90
Display resolution (horizontal) (px) : 320
Display resolution (vertical) (px) : 240
Input voltage at DC (V) : 5 V to 5 V
Thermal sensitivity at 30 °C (°C) : 0.06
Auto focus : No
Relative accuracy of measurement (%) : 2
Wave band (µm) : 8 µm to 14 µm
Field of view (FOV) horizontal (°) : 50
Field of view (FOV) vertical (°) : 38
Frames per second (fps) : 25
Instantaneous field of view (IFOV) (m rad) : 7.3
Max. battery duration (h) : 3.5
Auto orientation : Yes
Video recording : No
Focus stacking : No
Digital zoom : 1
With memory function : Yes
Internal memory : No
SD-card slot : No
MiniSD-card slot : No
MicroSD-card slot : Yes
CompactFlash I card slot : No
CompactFlash II card slot : No
USB connection : Yes
Bluetooth interface : No
Wi-Fi-compatible : No
Analogue video out : No
HDMI-connection : No
Ethernet : No
Gigabit Ethernet : No
With communication interface RS-232 : No
With communication interface RS-485 : No
FireWire (IEEE1394) connection : No
Detector cooled : No
Ambient temperature (°C) : 0 °C to 50 °C
With laser : No
With built-in torch : No
With stand holder : Yes
Suitable for exchangeable lenses : No
With digital alarm : No
With humidity sensor : No
Display diagonal (inch) : 2.4
Thermal image : Yes
Thermal-/visual image (in one image) : No
Visual image : No
With laser distance measurement : No
With touch screen : No
Battery powered : Yes
External power supply required : No
Power consumption (W) : 5
