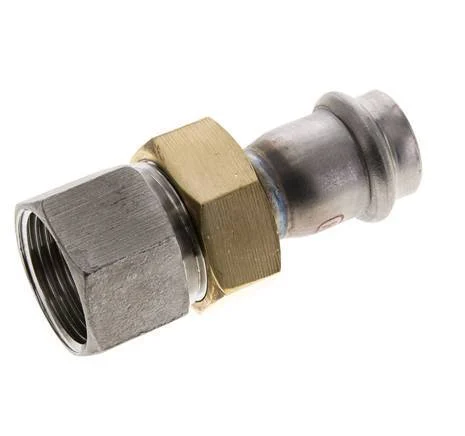

Union Press Fitting – 22mm Female & Rp 1” Female – Stainless Steel Flat Sealing

This is a union straight press fitting made from stainless steel 1.4404. The fitting has a female press port and a female threaded port. Connection 1 is designed for a tube with an outer diameter of 22 mm and connection 2 has Rp 1 inch female threads. The fitting has an FKM sealing ring. It also has a flat seal made of centellen. The maximum pressure is 40 bar (580 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 88 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
• It has a flat seal
• Stainless steel material has better chemical resistance than other materials

Specifications

Thread : 1 inch
Tube outer diameter : 22 mm
Connection type : Female press connection,Inner thread cylindrical BSPT-Rp
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 40
Min temperature (°C) : -20
Max temperature (°C) : 200
Type of sealing : Flat sealing
Model : 3-part
Length (mm) : 88
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
Shape : Straight
With drain : No
