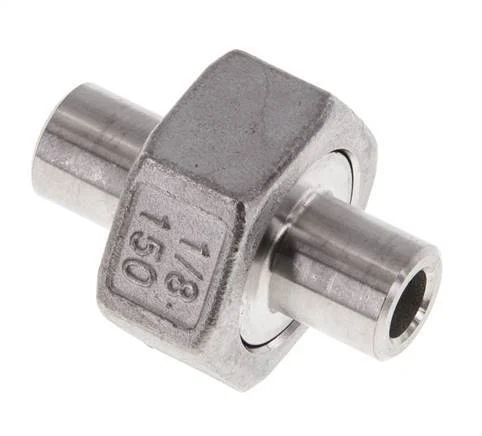

Union Straight Connector 10.2mm Weld End Stainless Steel Conical Seal 16bar (224.8psi)

This is a union straight connector with two welding ends. It is used in low-pressure applications up to 16 bar (224.8 psi). Stainless steel 316 (1.4408) fittings have excellent corrosion resistance (better than stainless steel 304). It has a conical seal.

Specifications

Welding connection (mm) : 10.2
Connection type : Welding connection
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Type of sealing : Conical sealing
Quality of material : Stainless steel 316 (1.4408)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Shape : Straight
With drain : No
