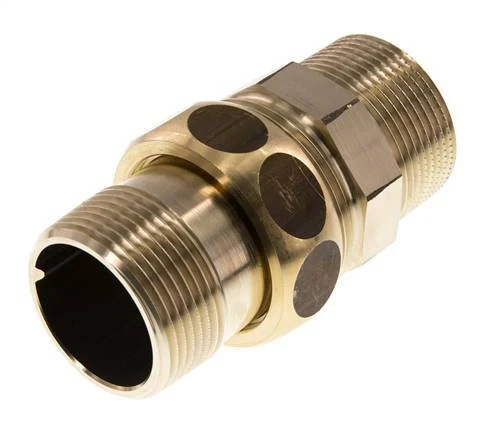

Union Straight Connector R1 1/4” Brass Flat Seal Centellen 16bar (224.8psi)

This is a union straight connector with male (R) threads. It is used in low-pressure applications up to 16 bar (224.8 psi). Brass fittings are suitable for neutral and non-corrosive media. It has a flat seal made of centellen that makes it suitable for use with water, steam, alcohol, flammable gases, hydrocarbon based oils.

Specifications

Thread : 1 1/4 inch
Connection type : Outer thread conical BSPT-R
Material : Brass
Seal material : Centellen
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -200
Max temperature (°C) : 200
Type of sealing : Flat sealing
Model : 3-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
