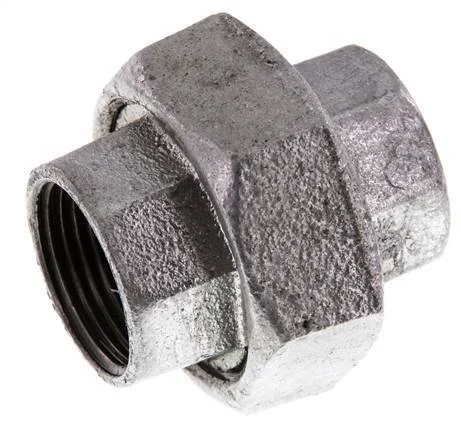

Union Straight Connector Rp1” Female Cast Iron Flat Seal 25bar (351.25psi)

This is a union straight connector with female (Rp) threads. It is used in low-pressure applications up to 25 bar (351.25 psi). It is made of malleable cast iron and has a zinc coating for corrosion protection. It has a flat seal.

Note: The seal is ordered separately.

Specifications

Thread : 1 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Malleable cast iron
Max pressure at 20 °C (bar) : 25
Min temperature (°C) : -20
Max temperature (°C) : 80
Type of sealing : Flat sealing
Material connection 1 : Malleable cast iron
Material connection 2 : Malleable cast iron
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
