Manifold and hoses designed specifically for transcritical C02 (R-744) applications. The YELLOW JACKET® TITAN® Test and Charging Manifold for transcritical CO2 systems is constructed with a forgedaluminum alloy body making it lightweight for easy handling and durability. No sight glass for added safety.
YELLOW JACKET® 45925 Offers
Features
- High and low side C02 quick couplers for equipment fitted with low loss snap couplers (included in 45930)
- Large, easy-to-read 3-1/2” (90 mm) liquid-filled red and blue,
- 1% accuracy (Class 1) gauges; psi/bar
- Proven double o-ring piston for reliability and long service life
- Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats
- Fourth hose to enable connection to hi/lo sides, refrigerant tank, and vacuum pump for diagnostics, evacuation and
- charging without switching hoses
- ⅜” (0.95 cm) vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings on unit are ¼”)
- Durable carrying case
- Dedicated transcritical CO2 hose 72” (182 cm) in length
- One-year warranty
- Designed and assembled in the USA
What’s included with the YELLOW JACKET® 45925

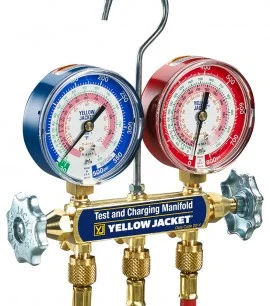

- Yellow Jacket 45925 CO2 Transcritical Test and Charging Manifold
