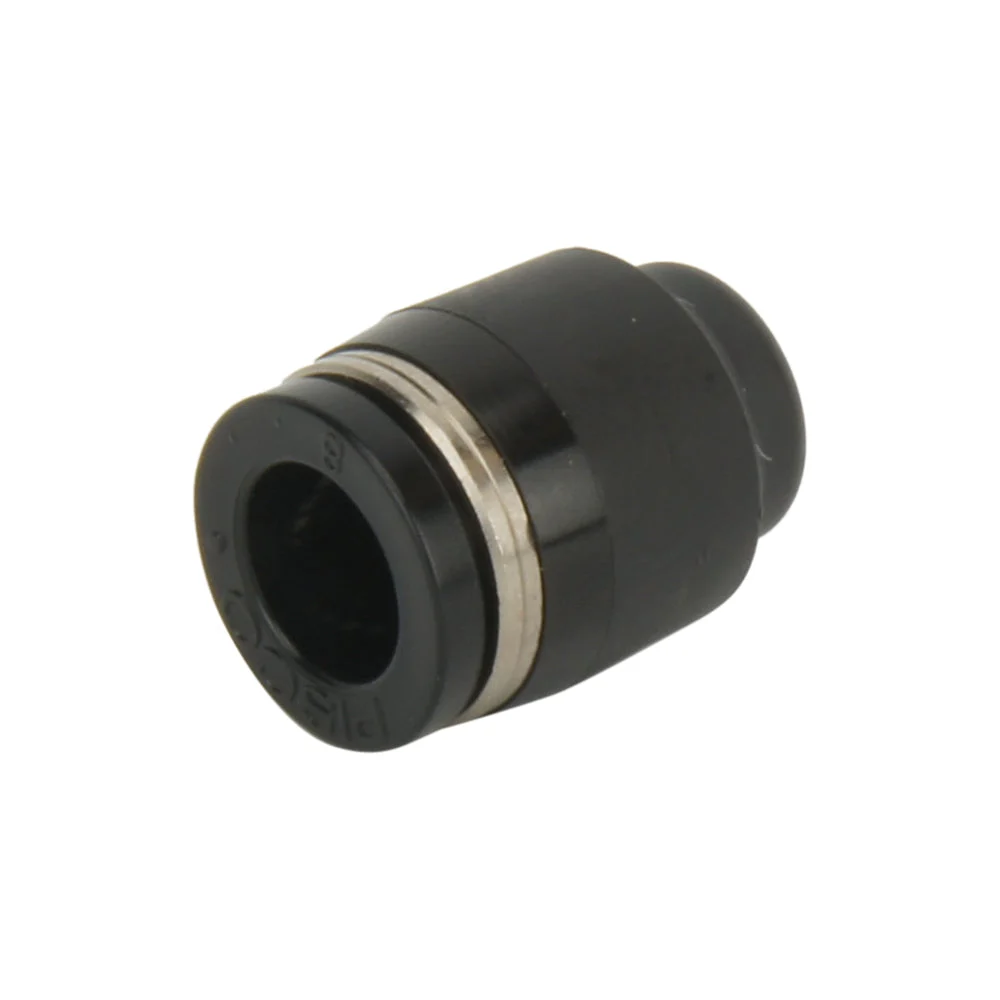

12mm Cap [10 Pieces]

This cap fitting has one connection port to connect it to a pneumatic hose and stop the flow of air via a cap. Connection is a 12 mm push-in fitting. The fitting has a PBT housing, Polyoxymethylene (POM) connection material, and a NBR seal. It is suitable for a max pressure of 10 bar and a temperature range of 0 – 60 °C. It is suitable for vacuum applications. The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back. It is suitable for Nylon, Polyethylene (PE), or Polyurethane (PU) tubing material.

Pros:

• It has a push-in connection for easy installation and release for pneumatic hosing
• It is suitable for vacuum applications

Cons:

• Should only be used with firmer hosing material (nylon, polyethylene (PE), or polyurethane (PU)), otherwise, a

Specifications

Push-in connection : 12 mm
Fitting features : Capped
Material : PBT
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 0
Max temperature (°C) : 60
Material connection 1 : Polyoxymethylene (POM)
With drain : No
