AVA-HDMI-SPT-1IN2OUT-HDR2 Includes Only:
- HDMI Splitter
- DC5V/1A power Adapter
- User Manual
Features:
- Distribute 1 HDMI source to 2 HDMI displays
- Support ultra HD resolution 4Kx2K at 60Hz
- Support HDMI 3D Support YUV 4: 4: 4
- Support HDR HDMI 2.0 and HDCP2.2 compliant
- Low power consumption
- Support configures the Video resolution automatically according to the capabilities of each connected monitor, allows simultaneous mixed 4K and 1080p display outputs
- Plug and Play

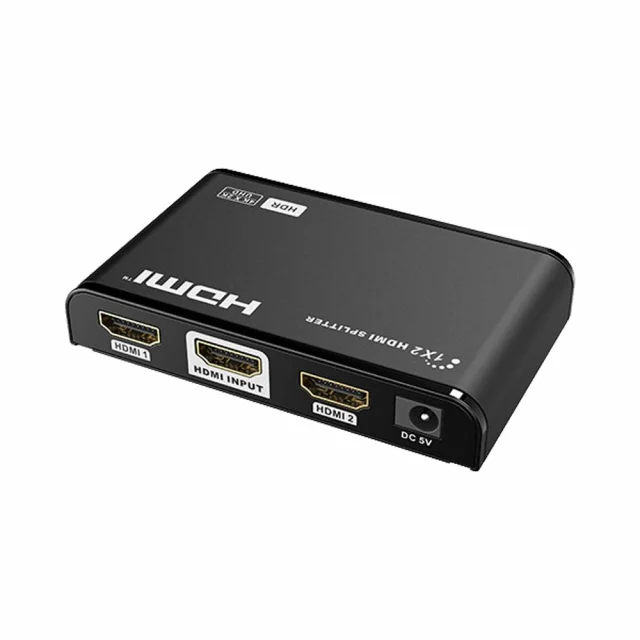

1 x 2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. Apply for STB, Blu-ray Player, Media Player, Laptop, D-VHS and other HD-Player devices. It’s compatible with HDMI 3D and 4K x 2K.
Technical Details
| Input Ports | 1 x HDMI |
| Output Ports | 2 x HDMI |
| Power Indicator Led | 1xLED |
| Signal Indicator Led | AxLED |
| HDMI Version | Compatible with HDMI 1.4, HDMI 2.0 |
| HDCP Version | Compatible with HDCP 1.4, HDCP 2.2 |
| HDMI Resolution |
|
| Frequency Range | 25f1Hz – 594f1Hz |
| Video Form | Support MD Video and 4K x 2K at 30/60Hz ultra HD Video |
| Input and Output DDC Signal | 5Vp – p (TTL) |
| Audio | Support standard Audio and DSD (Direct Stream Digital) and HD (HBR) Audio |
| HDR | Support |
| EDID Management | Support smart EDID Management, to display different resolution monitors at the same time |
| Working Temperature | 0 C~ 60 C |
| Power Supply | DCSV/1A |
| Power Consumption | <2.5W |
| Dimension | 96 mm (l) x 59 mm (W) x 1 6.8 mm (H) |
| Weight | 100g |
| Color | Black |
