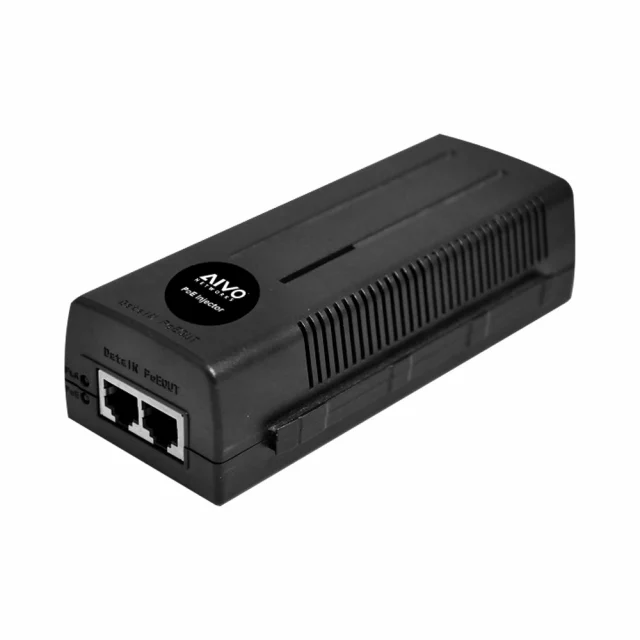

Name: AVYCON AVN-PI-IJT30G 30w Poe Injector
SKU: AVN-PI-IJT30G
Availability: InStock

Features:

The AVN-PI-IJT30G is a UL listed one channel 10/100/1000M PoE injector which fits the IEEE802.3at standard, can output 30W power for the end devices.
It is a single port Mid-spans that offer a compact and cost-effective, fully IEEE 802.3at compliant solution for remote powering of wireless LAN (WAN) access points, IP Security Cameras, VoIP telephone and other low port density installations.
The AVN-PI-IJT30G PoE Mid-spans eliminates the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.

No. of Ports	1
Pass-Through Data Rates	10/100/1000 Mbps
Power over Ethernet Output	Pin Assignment and Polarity: 3/6 (+), 1/2 (-) Output Power Voltage: 54VDC User Port Power: 30W
Input Power Requirements	AC Input Voltage: 100 to 240 VAC AC Input Current: 0.3A 100-240 VAC AC Frequency: 50 to 60 Hz
Dimensions	150 mm x 65 mm x 38 mm (W x D x H)
Indicators	System Indicator: AC Power User Indicator: Channel Power
Connectors	Shielded RJ-45, EIA 568A and 568B
Environmental Conditions	Operating Ambient Temperature: -10 to 45°C (14°F ~ 113°F) Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -20°C to 70°C (-4°F ~ 158°F) Storage Humidity: Maximum 95%, Non-condensing
Reliability	MTBG: 100, 000 hrs. at 25°C (77°F)
Regulatory Compliance	IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC
Electromagnetic	FCC Part15, Class B
Emission and Immunity	EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI
Surge Protection	AC Port: 6kV RJ45 Port: 4kV
Safety Approvals	UL/cUL per EN 60950-1 GS Mark per EN 60950-1 KC, PSE, CB, CCC, BSMI, EAC, NOM, S-MARK etc.
