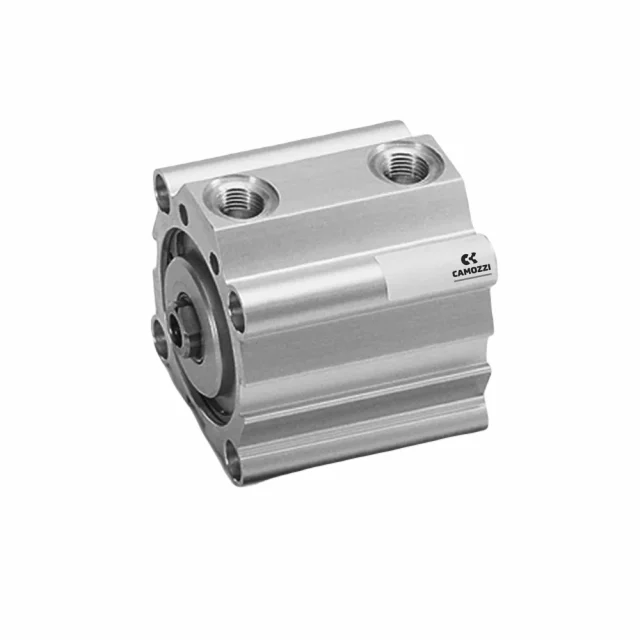

Camozzi, QP2A080A100, Series QP Short-Stroke Cylinder, 80 mm Bore, 100mm Stroke
Features:
- The guides are manufactured in the external profile parallel to the sliding axis on three sides.
- These are used to locate the switches that sense the piston position.
- The non-rotating guides make the QPR suitable for supply operations and for handling equipment.
- Their compact dimension allows the installation in small spaces.
- Because of their particular construction, they can be mounted by means of feet or trunnions.
For more information, please see Data Sheet
Technical Details
| Type of Construction | Compact profile |
| Operation | Single and double-acting |
| Materials |
|
| Assembly | By means of screws or brackets |
| Operating Temperature | 0°C – 80°C (with dry air – 20°C) |
| Operating Pressure | 2 – 10 bar |
| Fluid | Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Strokes | The minimum stroke for use of the sensors is 10 mm |
