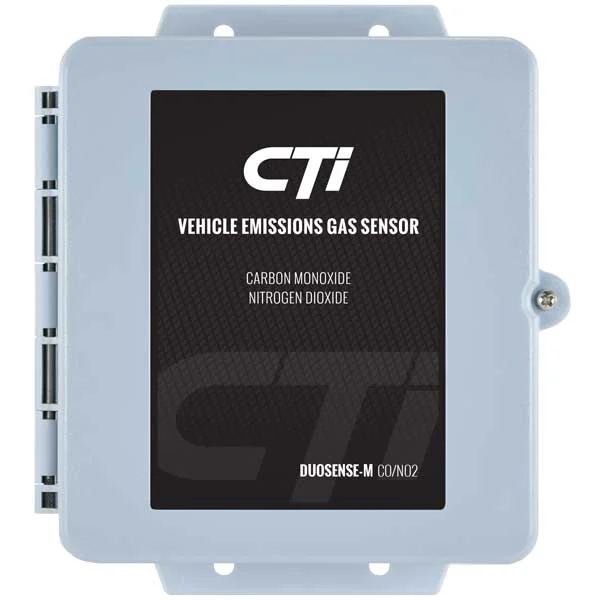

Calibration Technologies (CTI), DUOSENSE-M, Carbon Monoxide (0-200 ppm), and Nitrogen Dioxide (0-10 ppm), RS-485 Modbus, Polycarbonate Enclosure
Features:
- Each DuoSense-M detector monitors a 50″ radius (7,500 square feet).
- Duo-Sense-M uses RS-485 Modbus output for use with MVE controller.
- Warehouse Mounting Kit includes: Wall Plate, Safety Cage that allows sensor access, and 36″ straps for pillar mounting, and 1/2″ LB conduit body.
- LCD screen for setup, calibration and operation.
- Electrochemical carbon monoxide sensor, (0-200 ppm CO).
- Electrochemical nitrogen dioxide sensor, (0-10 ppm NO2).
- Target gas specific electrochemical sensor technology.
- Weatherproof NEMA 3RX washdown-duty polycarbonate Enclosure safe for outdoors and wash-down areas.
Technical Details
| Power Requirements | 24vdc @ 10mA |
| Signal Ouput | RS-485, Modbus RTU |
| Operating Temperature | -4F to +122F |
| Sensor Elements | Carbon Monoxide (CO) 0-200 PPM; Nitrogen Dioxide (NO2) 0-10 PPM |
| Detection | Electrochemical (diffusion method) |
