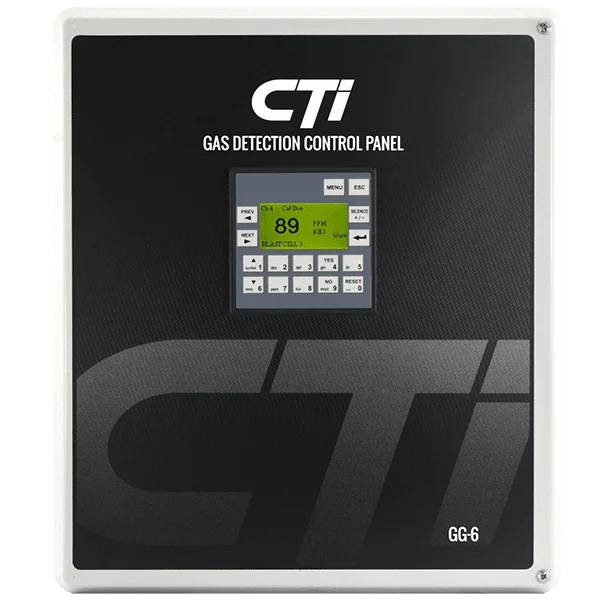

Calibration Technologies (CTI), GG-6, GG-6 Control Panel
Features:
- 6-Channel Gas Monitor (expandable to 30 channels using GG-XM expansion modules).
- 4/20 mA inputs for use with all CTI gas detectors outputting 4-20 mA.
- Includes: graphic LCD display, six programmable 10A relay outputs, event logging, dual adjustable set points per channel, and power supply. Analog output board and ethernet output optional.
- Remote reset and silence capable.
- System configuration through user friendly menu-driven LCD operator interface.
- Can accommodate up to three expansion modules (GG-XM) maxing out at 30 sensors total (8 sensors on each GG-XM).
- Weatherproof NEMA 4X polycarbonate Enclosure safe for outdoors and wash-down areas.
- SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12
Technical Details
| Size | 15.8″ high x 14″ wide x 7″ deep |
| Weight | 12.0 lbs |
| AC Power Requirements | 110vac @ 3A |
| DC Power | +24vdc @ 4A |
| Display | Backlit Digital LCD w/ real time status display |
| Relay Outputs | (1) Common Horn; (5) Fully programmable |
| Features | Calibration Mode, Relay Test Function, Adjustable warn and alarm setpoints, Alarm log, Adjustable relay latch/non-latch, Downscale alarm setting for O2 monitoring, horn silence button, remote reset and silence functionality |
| Certification | SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12 |
