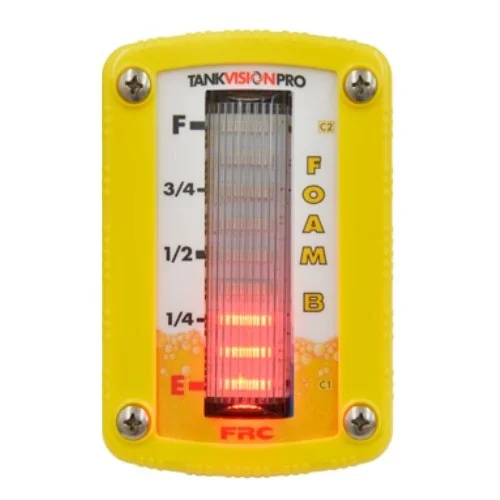

FRC (Fire Research Corp.), WLA470-B00, Foam Display, Tankvisionpro 400, Remote, Class B
Features:
- More accurate tank level display – up to 9 LED level indicators
- Programmable brightness control
- Full 180° wide-view, easy to see display
- With 12 pin connector for:
- Visual & audible warnings
- Silence button for audio warning
- Automatic electric valve control
The TankVision Pro is the fire industry’s first multicolor tank level display. It uses a pressure sensor to sense the amount of liquid in the tank and can be calibrated to accurately display the volume in tanks of all shapes and sizes.
Technical Details
| Display Module | |
| Supply Voltage | 9 – 30 VDC |
| Supply Current | 0.25 Amp Maximum |
| Dimensions | 4-3/8 by 3 Inches |
| Housing | Waterproof Polycarbonate with plastic lens and enclosure to protect electronics |
| Indicators | Tri-Color of Bright LEDs (9/10 Rows) |
| Viewing Angle | 180° |
| Cab Miniature Display | |
| Supply Voltage | 9 – 30 VDC |
| Supply Current | 0.5 Amp Maximum |
| Dimensions | 2-1/4 by 1-1/2 Inches |
| MaxVision LED Tank Display | |
| Supply Voltage | 12/24 VDC |
| Supply Current | 1 Amp Maximum at 12 VDC |
| Dimensions | 14-3/8 by 1-7/8 Inches |
| Indicators | 96 Super Bright LEDs |
| Remote Light Driver | |
| Supply Voltage | 9 – 30 VDC |
| Supply Current | 0.1 Amp Maximum |
| Switch | Solid State |
| Switching Voltage | 9 – 30 VDC |
| Switching Current | 20 AMPS Maximum at 12 VDC / 10 AMPS Maximum at 24 VDC |
| Pressure Sensor | |
| Housing | Stainless Steel with 1/4-18 NPT for Mounting |
| Sensor | Ceramic Diaphragm |
| Pressure Range | 0 – 5 PSI (Maximum Tank Height – 10 Feet) |
| Excitation Voltage | 5 VDC |
| Pressure/Vacuum Foam Tank Vent | |
| Material | PVC and Aluminum with Delrin Valves |
| Relief Pressure | ±0.01 PSI |
| Maximum Flow Rate | Compensates 100% for Concentrate Flow Rates / Below 60 GPM |
